Work station
Entry-Level Server
ECS5000 was especially
design to break the workstation and file server entry barrier for the
system integrators. It combines the powerful design of a workstation / file
server chassis and the user-friendly concept of a PC case. A wonderful combination of
computer technology and compact design.
Tested
and recommended by
Intel,
Tyan
Takes Dual Power Supply Unit.
|
 |
| |
|
|
|
|
|
| |
 |
 |
 |
|
| |
Front view |

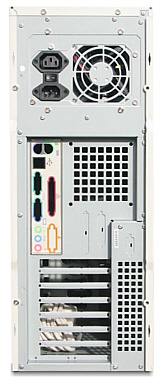

Back view |
Inside view |
|
| |
|
|
|
|
|
| |
 |
|
| |
Features: |
|
|
|
|
| |
|
|
| |
 |
Compact size saves office space. |
|
|
High-speed cooling fans offer
good air flow and the best ventilation conditions for CPU, HDD &
Interface cards. |
|
|
Main-board plate mounting
holes for dual Xeon CPU, compatible with Intel®
MS440GX mainboard. |
|
|
Meets CE, FCC requirements. |
|
|
3 Pcs cover for easy
assembling & maintenance. |
|
|
Specially designed grounding
points minimize EMI. |
|
|
Snap-on front panel for quick
& easy installation. |
|
|
2x 80mm front fans (Included) & 1x 90mm rear fan (Optional). |
|
|
Long card metallic holder. |
|
|
Removable drive frame (3.5"). |
|
|
Removable
standard ATX I/O Shield. |
|
|
Removable holder for secure
support of dual Xeon CPU. |
|
|
Takes standard PS2 PSU or Mini
Redundant PSU as well as AT PSU. |
|
|
Supports all brands of standard
ATX (12"x9.5") and
extended ATX (12"x13") size
boards: Tyan S2462; Dual AMD Athlon Processor; Intel® MS440GX
board with dual Intel® XEON CPU. |
|
|
ECS5000LX: This version is 7cm deeper
and include a cage to support an extra 4x HDD. |
|
|
| |
|
|
| |
|
|
| |
Pictures: |
|
|
|
|
| |
|
|
|
|
|
| |
 |
 |
 |
 |
|
| |
Designed top |
Removable feet |
LED |
FDD slot |
|
| |
|
|
|
|
|
| |
 |
 |
 |
 |
|
| |
Vent holes on side of front panel |
Lower vent holes on front panel |
2x80mm fans in front of drives (included) |
1x80mm or 1x90mm or 1x120mm fan space & long card holder |
|
| |
|
|
|
|
|
| |
 |
 |
 |
|
|
| |
Front fan space
|
Front fan:
80mm or 90mm or
120mm.
(Mouse over the picture) |
Takes a
standard ATX PSU
or
Mini Redundant PSU |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Specifications: |
|
|
|
|
| |
|
|
|
| |
Model Number: |
ECS5000 |
|
| |
Logo Badge: |
Oval |
|
| |
5.25" Bays: Exposed |
3 |
|
| |
3.5" Bays: Exposed / Hidden |
1 / 4 |
|
| |
Mother board: |
ATX, Extended ATX up to 12" to 13" |
|
| |
Power Supply Unit: |
Standard PS2 ATX, Dual PSU |
|
| |
Ventilation: |
Rear: 1x 90mm (Optional), Front: 2x 80mm (Included)
+ 1x 80mm or 90mm or 120mm (Optional) |
|
| |
Size: H x W x D |
503 x 195 x 500mm |
|
| |
Weight: NW / GW |
12.5 / 14.5Kg |
|
| |
Packing: |
40'Cont: 660 Pcs / UK pallet: 24Pcs
Box size: 27x60x60cm |
|
| |
|
|
|
| |
|
|
| |
Options: |
|
|
|
|
| |
|
|
|
|
|
| |
 |
 |
|
|
|
| |
PC fans |
MRT-6320P Dual PSU |
|
|
|
| |
|
|
| |
|
|
| |
