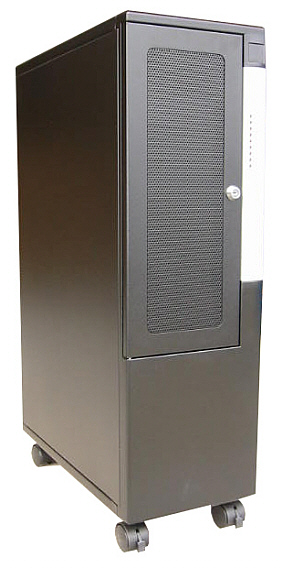

Server ECS898 aka
EYE-980
Aluminium
Server Case
|
 |
| |
|
|
|
|
|
| |
 |
 |
 |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
 |
|
| |
Features: |
|
|
|
|
| |
|
|
| |
 |
Lockable steel front door. |
|
|
Alluminium Alloy Front Panel. |
|
|
Detachable side panels for
easy assembly. |
|
|
Body made of SECC 1.2 mm thick Japanese
metal. |
|
|
8 Device LED. |
|
|
Redundant or PSII
PSU. |
|
|
1
optional 120mm fan at front. |
|
|
Extra 120mm fan space on PSII
PSU bracket. |
|
|
2
optional 80 mm back fan. |
|
|
Screw less slot covers. |
|
|
2 x 5.25" removable cage. |
|
|
3.5" convertible into 5.25". |
|
|
Front caster with lock. |
|
|
Available in Black or Beige. |
|
|
FCC compliant. |
|
|
| |
|
|
| |
|
|
| |
Pictures: |
|
|
|
|
| |
|
|
|
|
|
| |
 |
 |
 |
 |
|
| |

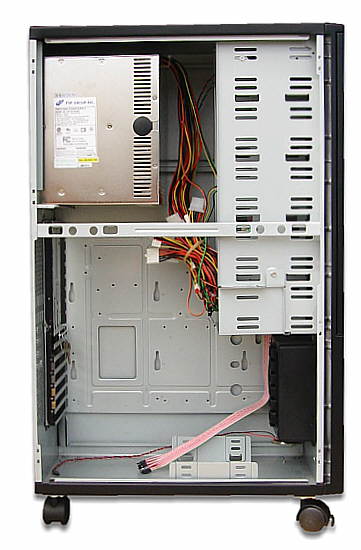

Drive cage |
3.5" bay |
8 device LEDs |

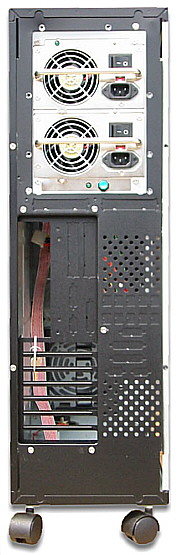

Big Redundant PSU |
|
| |
|
|
|
|
|
| |
|
|
| |
Specifications: |
|
|
|
|
| |
|
|
|
| |
Model Number: |
ECS898 (aka EYE-980) |
|
| |
Logo Badge: |
Square |
|
| |
5.25" Bays: Exposed / Hidden |
9 / 1 |
|
| |
3.5" Bays: Exposed / Hidden |
1 / 0 |
|
| |
Mother board: |
Micro ATX, ATX, Ext ATX Boards, Dual Xeon CPU board |
|
| |
Power Supply Unit: |
Big Redundant PSII ATX PSU |
|
| |
Ventilation: |
2x 80mm, 1x 120mm (with single PSII PSU
only)
1x 120mm at front |
|
| |
Size: H x W x D |
680 x 220 x 452 mm (+60 mm
castors) |
|
| |
Weight: NW / GW |
17 / 19 Kg (Single PSU), 20 /
22Kg (Dual PSU) |
|
| |
Packing: |
40'Cont: 470 Pcs / UK pallet: 18 Pcs
Box
size: 31x56x76cm |
|
| |
|
|
|
| |
|
|
| |
Options: |
|
|
|
|
| |
|
|
|
|
|
| |
 |
|
|
|
|
| |
Case fans |
|
|
|
|
| |
|
|
| |
